C6100
Android la qaadi karo UHF RFID PDA oo leh baastoolad xajin
● Android 10 OS oo wata shahaadada GMS
20m fogaan dheer oo leh impinj RFID module
● 5.5inch taabashada shaashadda oo leh 720 x1440 Panel
● Xirfadlaha Infrared 1D/2D Barcode Reader si aad si dhakhso ah u sawirto
● Batari 7200mAh/3.8V ah oo xoog badan oo meesha laga saari karo
● IP65 aan biyuhu lahayn iyo kuwa aan boodhka lahayn
● Naqshad xajin qori ergonomic heer sare ah
Shaqada
Hordhac
Hosoton C6100 waa Android ruug-caddaa PDA oo leh qoriga wax-akhriska RFID kaas oo bixiya awoodda heerka ugu wanaagsan ee UHF RFID.Naqshadeynta leh Impinj E710/R2000, waxay awood u siinaysaa ku dhawaad 20m oo fogaan wax-akhris oo dibadda ah.Terminalka RFID PDA waxa kale oo uu leeyahay iskaanka barcode infrared ikhtiyaari ah, processor Octa-Core iyo 7200mAh batari weyn si uu si fiican ugu adkaysto hawlaha maalinlaha ah ee degdega ah, gaar ahaan maaraynta hantida, tafaariiqda, bakhaarka, alaabada dharka, lacagta wadooyinka, maaraynta maraakiibta, iwm.

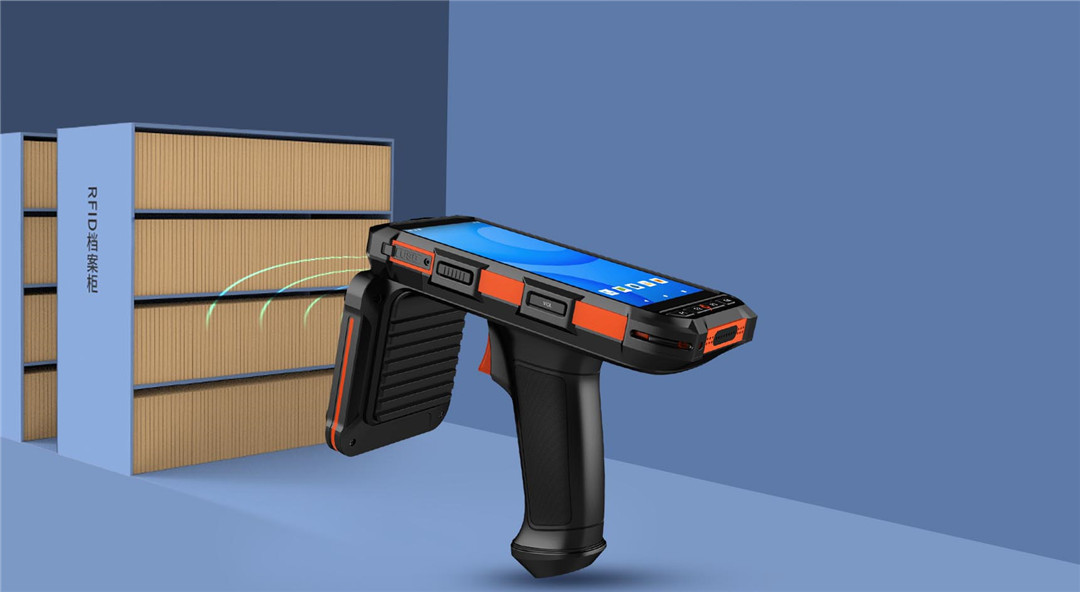

Akhriska iyo qorista UHF ee awooda badan ilaa 20m
Ku qalabaysan Impinj R2000 UHF akhristaha iyo anteeno wareeg ah, kaas oo bixiya waxqabadka fasalka ugu sarreeya ee akhrinta iyo qorista UHF, fogaanta akhrisku waxay noqon doontaa ilaa 18 mitir (la hagaajin karo oo ku salaysan jawiga tijaabada iyo sumadda) .Taageerida borotokoolka EPC C1 GEN2 iyo ISO18000- 6C iyo xargaha soo noqnoqda ee kala duwan, C6100 waxay si dhakhso leh oo sax ah ula macaamili kartaa sumadaha RFID ee caadiga ah.
Akhristaha Cusub ee Uhf Pioneer ee Deegaanka Cufan
Naqshad qalabeed oo heer sare ah oo ay ku rakiban tahay anteeno wareeg ah ayaa bixiya waxqabadka ugu fiican ee jawiga cufan, xawaaraha akhriska ee 200 tags/s oo qaadanaya wax ka yar 10 sekan 2000 tags.Hadday bannaanka tahay iyo hadday gudaha tahayba, C6100 had iyo jeer waxay ku tusi doontaa natiijooyin la yaab leh oo heer sare ah oo iskaan ah.
Xaalad shaqo oo lagu kalsoonaan karo inkastoo kulayl iyo qabow
C6100 waxay si wax ku ool ah ugu shaqeysaa kulayl daran iyo qabow qadhaadh (-20 ℃-50 ℃)
Ergonomic waara iyo Naqshad ka-badan
Naqshadeynta qaab-dhismeedka ergonomic-ka-badan iyo qaab-dhismeedka ergonomic waxay la yimaadaan xirmooyin IP65 ah , kuwaas oo ku nool inta badan deegaanka adag ee meelo kala duwan. wada noolaanshaha ay sabab u tahay farsamada saxda ah
Qaab-dhismeedka All-In-One ee baahida kala duwan
Koodhka ikhtiyaariga ah ee barcode/rfid/Module shaqeynta PSAM ayaa siinaya suurtogalnimo dheeraad ah shuruudaha mashaariicda kala duwan.
1D/2D/Baarcode Scaning, 16 MP/Kamerada danbe, 4G LTE WLAN/Dual Bands, Bluetooth® 4.2, NFC/RFID akhristaha/qoraa
| Nidaamka Hawlgalka | |
| OS | Android 10 |
| GMS la shahaado | Taageero |
| processor | 2.0GHz, MTK Octa-core Processor |
| Xusuusta | 3 GB RAM / 32 GB Flash (4+64GB ikhtiyaari ah) |
| Luuqadaha taageera | Ingiriis, Shiine la Fududeeyay, Shiine dhaqameed, Jabbaan, Isbaanish, Jarmal, Faransiis, Talyaani, Boortaqiis, Kuuriyaan iyo luqado badan |
| Tilmaamaha qalabka | |
| Cabbirka Shaashada | 5.5inch, TFT-LCD (720×1440) shaashad taabasho leh oo leh iftiin dambe |
| Badhamada / Keypad | 4 furayaasha- badhanka shaqada ee la baran karo;badhamada iskaanka ee laba-geesoodka ah;badhamada mugga kor/hoos u dhaca;badhanka dami/dami |
| Kamarada | 5 megapixels ee hore (ikhtiyaar ah), gadaal 13 megapixels, oo leh flash iyo auto diiradda shaqada |
| Nooca Tilmaamaha | LED, Afhayeenka, Vibrator |
| Battery | polymer li-ion dib la soo celin karo, 3.8V,7200mAh |
| Astaamaha | |
| 1D Barcode | 1D: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codebar/NW7, Interleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic |
| 2D Barcode | 2D: PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Koodhadhka Boostada, U PostNet, US Planet, Boostada UK, Boostada Australia, Boostada Japan, Boostada Holland.iwm |
| HF RFID | Taageerada Inta jeer ee HF/NFC 13.56Mhz Taageerada: ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| UHF RFID | Inta jeer ee 865 ~ 868MHz ama 920 ~ 925MHz |
| ProtocolEPC C1 GEN2/ISO 18000-6C | |
| Anteenada Gain Wareega ah (4dBi) | |
| R/W Range20m (tagsyada iyo bay'ada ku tiirsan) | |
| Isgaarsiinta | |
| Bluetooth® | Bluetooth®4.2 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz iyo 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20)TDD-LTE (B38/B39) ) |
| GPS | GPS (AGPs), Beidou navigation, baaxadda khaladka ± 5m |
| Interfaces I/O | |
| USB | USB 3.1 (nooca-C) waxay taageertaa USB OTGEthernet/USB-Host iyada oo loo sii marayo sariirta |
| POGO PIN | Hoosta PogoPin: Ku dallacaadda sariirta |
| SIM Slot | Dual nano SIM Slot |
| Afyare ballaarinta | MicroSD, ilaa 256 GB |
| AMNIGA PSAM (ikhtiyaar) | Protocol :ISO 7816Baudrate :9600, 19200, 38400,43000, 56000,57600, 115200Slot :2 slots(ugu badnaan) |
| Maqal | Hal ku hadla oo leh Smart PA (95 ± 3dB @ 10cm), Hal qaata, makarafoono buuqa joojinaya |
| Lifaaqa | |
| Cabirka (W x H x D) | 170mm x 80mm x 20mm (la'aanteed xajinta bastoolada iyo gaashaanka UHF) |
| Miisaanka | 650g (oo leh baytari) |
| Waarta | |
| Hoos u dhigista | 1.2m, 1.5m oo leh kiis boot, MIL-STD 810G |
| Shaabadeynta | IP65 |
| Deegaanka | |
| Heerkulka shaqada | -20°C ilaa 50°C |
| Heerkulka kaydinta | -20°C ilaa 70°C (la'aan baytari) |
| Ku dallaca heerkulka | 0°C ilaa 45°C |
| Qoyaanka Qaraabada | 5% ~ 95% (aan koobin) |
| Waxa ku soo gala sanduuqa | |
| Waxa ku jira xirmada caadiga ah | C6000 TerminalUSB Cable (Nooca C) Adaptor (Europe) Lithium Polymer Battery |
| Qalabka Ikhtiyaarka ah | Gacan-ku-kordhinta |
Mashiin awood leh oo UHF RFID PDA ah oo loogu talagalay xaaladaha codsiyada warshadaha badan
